Delay On Time Relay GRT6-A2 10A Adjustable Smart Relay, Delay Turn On Electronic Timer in Din Rail, 0.1s-10 Days Wide Range Delay Factory Automation Time Universal Voltage AC DC 24V 240V
Product details
| Management number | 226295550 | Release Date | 2026/05/09 | List Price | $9.35 | Model Number | 226295550 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Function and application:24v timer relay, preset the machine to work for a predetermined time and then turn off the time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide working voltage of ac dc 24-240v (50-60Hz), output contact: 1SPDT (1NO1NC), rated current is 10A. This ac dc 24-240V timer delay relay can be used in industrial equipment, lighting, manufacturing industries to accurately control the delay time of changing lighting, heating, motors, machines, etc
- INDICATOR BUTTON: The working status of the delay relay is indicated by the LED indicator: the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED indicator is off (indicating the stop of work). If you want to set the device to shut down after working for 5 days, please adjust the first knob of this delay relay to 10d and the second knob to 50%. Then the terminal will disconnect the circuit and stop working after working for 5 days. Please check the instructions and videos before operation, which can help you better use the relay

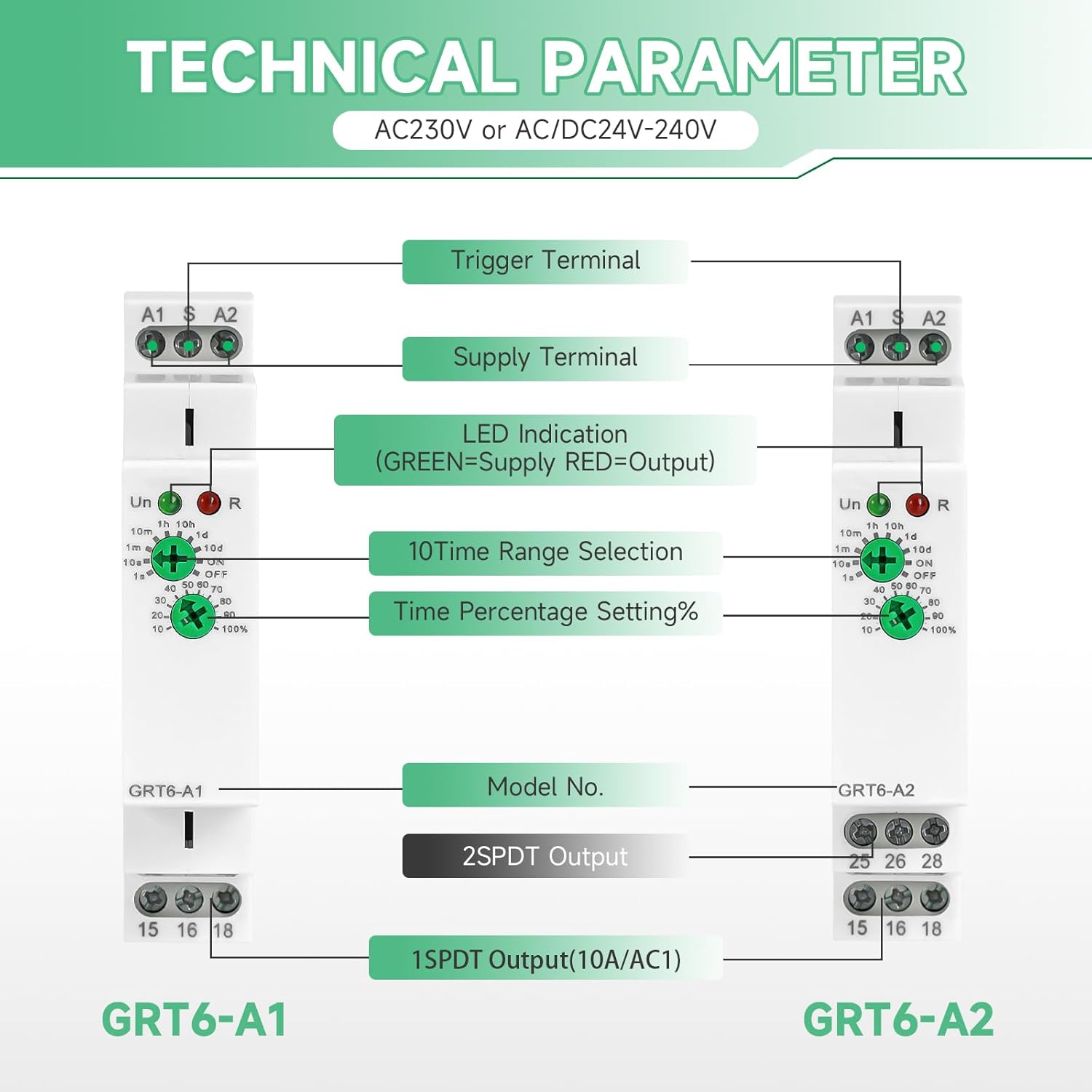

- Model of GRT6 Time Relay: 1. GRT6-A: Delay opening relay; GRT6-B: Delay closing relay; GRT6-S： Asymmetric cycle timer relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT6-M: Multi functional time relay, covering GRT6 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON）， And function E as shown in the figure, F,G,H,I,J
- Designed time relay: The GRT6 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 2.76 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
- WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
| ASIN | B0DZ2CHFKT |
|---|---|
| Brand Name | IGEYAPA |
| Unit Count | 1.0 Count |
| Screen Size | 2.88 Inches |
| Manufacturer | IGEYAPA |
| Model Number | GRT6 A2 AC/DC 24-240V |
| Material Type | Brass, Plastic |
| Number of settings | 5 |
| Included Components | 1 time relay*1 using manual |
| Manufacturer Part Number | GRT6-A2 AC/DC 12V-240V |
| Item Dimensions D x W x H | 3.68"D x 0.9"W x 2.88"H |
